Lumen Radio -wireless dmx

Description

Lumin Radio Wireless dmx

Lumin Radio Wireless dmx  CRMX™ technology has become the de-facto wireless lighting control standard across the globe. Our Wireless DMX products offers unprecedented reliability and will give you the trust you need to control your fixtures wirelessly. Running on the unlicensed 2,4 GHz frequency our lighting hire products can be used anywhere in the world.

see also wireless solutions

Prices listed are for guidance ONLY. Discounts are available for multiple products and quantities.

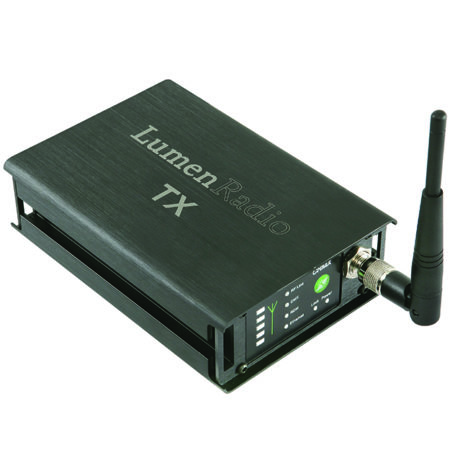

TX Transmitter Description

CRMX Nova TX is a DMX transmitter for one DMX universe of up to 512 channels at maximum refresh rate. Multiple CRMX TX units can be used together to transmit multiple DMX universes, allowing for easy system expansion.

Based on our advanced CRMX technology, the CRMX Nova TX brings you all the advanced features such as Automated Cognitive Coexistence, DMX fidelity, lowest latency in the industry at 5ms, 128 bit encryption and much more. Multiple CRMX Nova TX units can be combined to transmit several DMX universes, allowing easy system expansion. The CRMX Nova TX is compatible with all other CRMX products, both indoor and outdoor, DMX and RDM.

CRMX Nova utilizes the international license free ISM band on 2.4GHz.

Supported protocols

• USITT DMX512, DMX512(1990) & DMX512-A

Power

• High voltage input: 85-264VAC / 47-70Hz / 10W
• Low voltage input: 12VDC ±20% / 4W
• Overvoltage and ESD protected power inputs

Physical

• Dimensions (W x H x D): 110 x 44 x 125 mm (4.3″ x 1,7″ x 6.3″)
• Weight: 700g, 24oz
• Enclosure: Anodized extruded aluminum

Lumin Radio Wireless dmx RF characteristics

• Operational frequency range: 2402-2480 MHz
• Output power levels: 300mW (25dBm) (only allowed in North America), 100mW (20dBm), 50mW (17dBm), 10mW (10dBm)
• Tested link range: up to 1000 meters line-of-sight

Connectors

• DMX: 1 XLR Neutrik® 5-pin gold plated male (self terminated)
• Antenna: RP-TNC male
• AC: IEC 320-C14 male
• DC: Pluggable terminal strip, Phoenix® MSTD 2,5

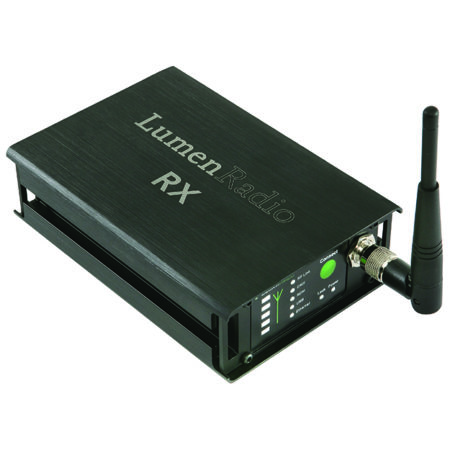

RX Receiver Description

CRMX Nova RX is a receiver for one DMX universe being transmitted by any Lumin Radio wireless dmx CRMX transmitter. It supports one full DMX universe of up to 512 channels at maximum refresh rate.

Based on our advanced CRMX technology, the CRMX Nova RX brings you all the advanced features such as Automated Cognitive Coexistence, DMX fidelity, lowest latency in the industry at 5ms, 128 bit encryption and much more. To fit into old wireless systems with legacy equipment, the CRMX Nova RX is compatible with W-DMX™ transmitters working on the 2.4 GHz band. Using it in this way will not allow you to make use of the benefits of the advanced CRMX technology.

CRMX Nova RX is compatible with all other CRMX products, both indoor and outdoor, DMX and RDM.

CRMX Nova RX utilizes the international license free ISM band on 2.4GHz.

Supported protocols
USITT DMX512, DMX512(1990) & DMX512-A

Power

• High voltage input: 85-264VAC / 47-70Hz / 10W
• Low voltage input: 12VDC ±20% / 2.5W
• Overvoltage and ESD protected power inputs

Physical

• Dimensions (W x H x D): 110 x 44 x 125 mm (4.3″ x 1,7″ x 6.3″)
• Weight: 700g, 24oz
• Enclosure: Anodized extruded aluminum

Lumin Radio Wireless dmx RF characteristics

• Operational frequency range: 2402-2480 MHz
• Tested link range: up to 1000 meters line-of-sight

Connectors

• DMX: 1 XLR Neutrik® 5-pin gold plated female
• Antenna: RP-TNC male
• AC: IEC 320-C14 male
• DC: Pluggable terminal strip, Phoenix® MSTD 2,5
